PanSevence Posted October 17, 2023 Posted October 17, 2023 (edited) Hi, I have a problem with sending large files as an attachment. When the file is below 100MB, I can send it without any issues. However, when the file exceeds 100MB, the upload process starts for a second and then suddenly stops. I don't get any error messages. In the admin control panel, I have set an unlimited file size limit and allowed all extensions. I am sending a .rar package, but the file extension does not matter. The server configuration is correctly set up for sending large files with options like client_max_body_size = 2048m, post_max_size = 2048M, upload_max_filesize = 1024M. I am attaching a gif to illustrate the problem. Please help. GIF TEST UPLOAD BIG FILE AND NORMAL @Jim M Edited October 17, 2023 by PanSevence
Jim M Posted October 17, 2023 Posted October 17, 2023 Would recommend disabling all third party applications/plugins and switching to an unmodified theme to just rule these items out. There should be an error which pops up at some juncture to warn the user the upload failed. If you are refreshing prior to that happening, I would just sit and await that to happen.
PanSevence Posted October 17, 2023 Author Posted October 17, 2023 @Jim M I recorded a video for you in which I followed the above recommendations. I turned off all applications and plugins. I switched to the default theme. The problem still persists; I can send files up to 100MB without any issue, but anything larger results in an error. The first time, I received a -200 error, but usually, it doesn't show up. It looks like what happened on the second attempt: the file starts uploading for a moment, and then the upload is interrupted.
Jim M Posted October 17, 2023 Posted October 17, 2023 -200 would mean that there is a server error when processing the upload. I'm afraid, you will want to work with your hosting provider or server administrator to further troubleshoot the issue. It is worth mentioning that our software does support chunked uploading so having your PHP configuration set super high may actually be hurting it.
PanSevence Posted October 17, 2023 Author Posted October 17, 2023 @Jim M I have contacted the administrator, we tried many different configurations of php, nginx and apache2 but unfortunately the problem still exists. We are out of ideas on how to solve this issue hence this topic. Why does it look like only 1 fragment is being sent and the connection is interrupted with a larger file than 100mb. How can I diagnose the problem? We tried higher and lower php configurations to no avail. I need to transfer larger files for my community.
Jim M Posted October 17, 2023 Posted October 17, 2023 2 minutes ago, PanSevence said: @Jim M I have contacted the administrator, we tried many different configurations of php, nginx and apache2 but unfortunately the problem still exists. We are out of ideas on how to solve this issue hence this topic. Why does it look like only 1 fragment is being sent and the connection is interrupted with a larger file than 100mb. How can I diagnose the problem? We tried higher and lower php configurations to no avail. I need to transfer larger files for my community. You would need to diagnose this at a server-level, I'm afraid. As it is a server error, we cannot tell you what and why this is happening. If you use a WAF, like CloudFlare, ensure you're not exceeding any pre-set limits inherent in that service either.
Clover13 Posted October 17, 2023 Posted October 17, 2023 (edited) Looks like you are using CF on your site, and you're capped at 100MB unless you are on a Business+ plan. Look under Network >> Maximum Upload Size in CF for your site. Edited October 17, 2023 by Clover13
PanSevence Posted October 17, 2023 Author Posted October 17, 2023 @Clover13 @Jim M I have completely disabled WAF currently and the issue is still present - no changes.
Jim M Posted October 17, 2023 Posted October 17, 2023 3 minutes ago, PanSevence said: @Clover13 @Jim M I have completely disabled WAF currently and the issue is still present - no changes. How did you disable it? If your domain is still passing through the service, it would still be impacted by their restrictions.
PanSevence Posted October 17, 2023 Author Posted October 17, 2023 (edited) @Jim M I disabled the proxy for Cloudflare in the DNS zone, and currently the traffic is not going through CF servers but directly to main server. IMAGE Edited October 17, 2023 by PanSevence
Jim M Posted October 17, 2023 Posted October 17, 2023 You would need to wait for that change to impact your DNS. Unfortunately, again though, any hosting side conflicts or errors would need to be investigated by your hosting provider or server administrator. If you continue to have issues, perhaps simplifying your configuration may help you find those more easily.
PanSevence Posted October 17, 2023 Author Posted October 17, 2023 @Jim M I pinged my domain and it points to the main server's address. Could you check in your test environment if you can send an attachment larger than 100MB? Could you share the parameters that might affect this?
Jim M Posted October 17, 2023 Posted October 17, 2023 We have countless clients who run communities on our Cloud and self hosted which are able to. I’m afraid, you would need to continue to troubleshoot this with your hosting provider. G17 Media 1
PanSevence Posted October 17, 2023 Author Posted October 17, 2023 I understand that I probably won't get any tips here that would solve the problem, but thank you for trying to help. I will continue to try to solve this issue. It's unfortunate that there's nobody in support who handles your cloud, as I might then get more technical guidance.
Jim M Posted October 17, 2023 Posted October 17, 2023 5 minutes ago, PanSevence said: It's unfortunate that there's nobody in support who handles your cloud, as I might then get more technical guidance. I'm not quite sure what you mean here as I do provide support to our Cloud, as well. We would only provide software support for our Classic (self-hosted) licensed individuals. Supplying PHP configurations, like you are asking for, would be outside of that support as it is supporting servers, rather than software. Outside of the information already provided, working with your hosting provider on why you are having issues here would be the best method of support as they should be able to capture the error which is happening here while the upload is being processed on the server and help you troubleshoot it. PanSevence 1

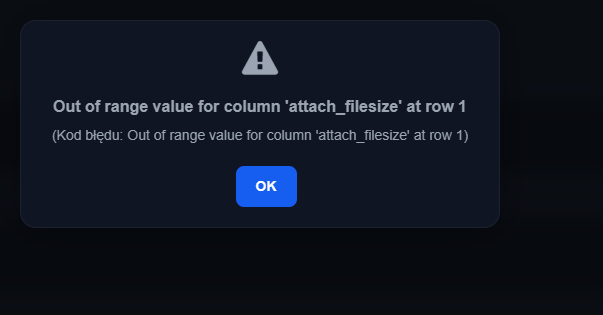

PanSevence Posted October 17, 2023 Author Posted October 17, 2023 @Jim M It looks like the issue with sending has been resolved, but now when I send a file weighing 2GB, I receive the following error:
Jim M Posted October 17, 2023 Posted October 17, 2023 9 minutes ago, PanSevence said: @Jim M It looks like the issue with sending has been resolved, but now when I send a file weighing 2GB, I receive the following error: attach_filesize on core_attachments is int 10 by default so it should hold 2GB in bytes no problem. Would suggest checking to ensure that your database tables align with the default and this is not from a third party application/plugin. PanSevence 1
PanSevence Posted October 17, 2023 Author Posted October 17, 2023 (edited) @Jim M I followed the recommendations and turned off all plugins and applications. I tried sending it on the default theme and encountered the same problem, so the plugins are not causing this issue. In the database, this column is set to int 11 file size 2 129 191 KB Edited October 17, 2023 by PanSevence
Marc Posted October 18, 2023 Posted October 18, 2023 If you visit the support area of your admin CP, are you seeing anything showing up there as an issue?
Marc Posted October 18, 2023 Posted October 18, 2023 You would then need to run those, as it states. Once done, try again
PanSevence Posted October 18, 2023 Author Posted October 18, 2023 @Jim M @Marc Stridgen I have resolved the earlier issue. However, when I still upload a file weighing 2GB, I receive this error. In the database, I have the type set to int 11 by default, I tried disabling all plugins and applications and uploading on the default theme without any changes. What can I do to resolve this problem? I am attaching the log from acp. INSERT INTO `core_attachments` ( `attach_ext`, `attach_file`, `attach_location`, `attach_thumb_location`, `attach_thumb_width`, `attach_thumb_height`, `attach_is_image`, `attach_hits`, `attach_date`, `attach_post_key`, `attach_member_id`, `attach_filesize`, `attach_img_width`, `attach_img_height`, `attach_is_archived`, `attach_moderation_status`, `attach_security_key` ) VALUES ( 'rar', 'entry-vm-v1.4.rar', 'monthly_2023_10/entry-vm-v1.4_rar.d2ff72776df73a3561e792020bb3e54d', '', 0, 0, 0, 0, 1697633557, 'f28b1ff52823b48674311484f47e3e01', 1, 2180291008, 0, 0, false, 'skipped', 'c38f32ccf2d9047e5bf1704efc9c40bc' ) Out of range value for column 'attach_filesize' at row 1 #0 /home/sharegon/web/sharegon.pl/public_html/system/Db/Db.php(941): IPS\_Db->preparedQuery() #1 /home/sharegon/web/sharegon.pl/public_html/system/File/File.php(1366): IPS\_Db->insert() #2 /home/sharegon/web/sharegon.pl/public_html/system/Helpers/Form/Editor.php(738): IPS\_File->makeAttachment() #3 /home/sharegon/web/sharegon.pl/public_html/system/Helpers/Form/Upload.php(285): IPS\Helpers\Form\_Editor->IPS\Helpers\Form\{closure}() #4 /home/sharegon/web/sharegon.pl/public_html/system/Helpers/Form/Editor.php(766): IPS\Helpers\Form\_Upload->__construct() #5 /home/sharegon/web/sharegon.pl/public_html/system/Helpers/Form/Editor.php(185): IPS\Helpers\Form\_Editor->getUploader() #6 /home/sharegon/web/sharegon.pl/public_html/system/Content/Controller.php(2694): IPS\Helpers\Form\_Editor->__construct() #7 /home/sharegon/web/sharegon.pl/public_html/applications/forums/modules/front/forums/topic.php(1247): IPS\Content\_Controller->_edit() #8 /home/sharegon/web/sharegon.pl/public_html/system/Content/Controller.php(2425): IPS\forums\modules\front\forums\_topic->_edit() #9 /home/sharegon/web/sharegon.pl/public_html/applications/forums/modules/front/forums/topic.php(1275): IPS\Content\_Controller->__call() #10 /home/sharegon/web/sharegon.pl/public_html/system/Dispatcher/Controller.php(107): IPS\forums\modules\front\forums\_topic->__call() #11 /home/sharegon/web/sharegon.pl/public_html/system/Content/Controller.php(50): IPS\Dispatcher\_Controller->execute() #12 /home/sharegon/web/sharegon.pl/public_html/applications/forums/modules/front/forums/topic.php(39): IPS\Content\_Controller->execute() #13 /home/sharegon/web/sharegon.pl/public_html/system/Dispatcher/Dispatcher.php(153): IPS\forums\modules\front\forums\_topic->execute() #14 /home/sharegon/web/sharegon.pl/public_html/index.php(13): IPS\_Dispatcher->run() #15 {main}
PanSevence Posted October 18, 2023 Author Posted October 18, 2023 When I set the column to big int, I can transfer the file without any issues. However, then I receive a critical error in the ACP database. Is there an option to prevent this so that after changing to big int I won't get this message?
Nathan Explosion Posted October 18, 2023 Posted October 18, 2023 The reason for the original issue is that 2180291008 is higher than 2147483647, which is the maximum value of an INT column if the column is signed, which is the default for INT - unsigned (for zero and positive numbers only) allows that limit to be doubled. https://dev.mysql.com/doc/refman/5.7/en/integer-types.html https://dev.mysql.com/doc/refman/8.0/en/integer-types.html G17 Media 1
Marc Posted October 18, 2023 Posted October 18, 2023 17 minutes ago, PanSevence said: When I set the column to big int, I can transfer the file without any issues. However, then I receive a critical error in the ACP database. Is there an option to prevent this so that after changing to big int I won't get this message? There is no way around it telling you that your table column is incorrect, as its not the original. I have reported internally as a bug however
